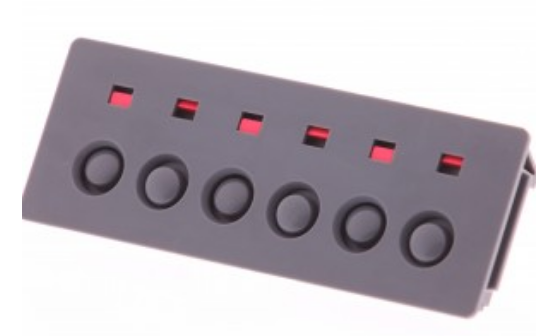

DCR02 SERIES

DCR02系列

Product specifications

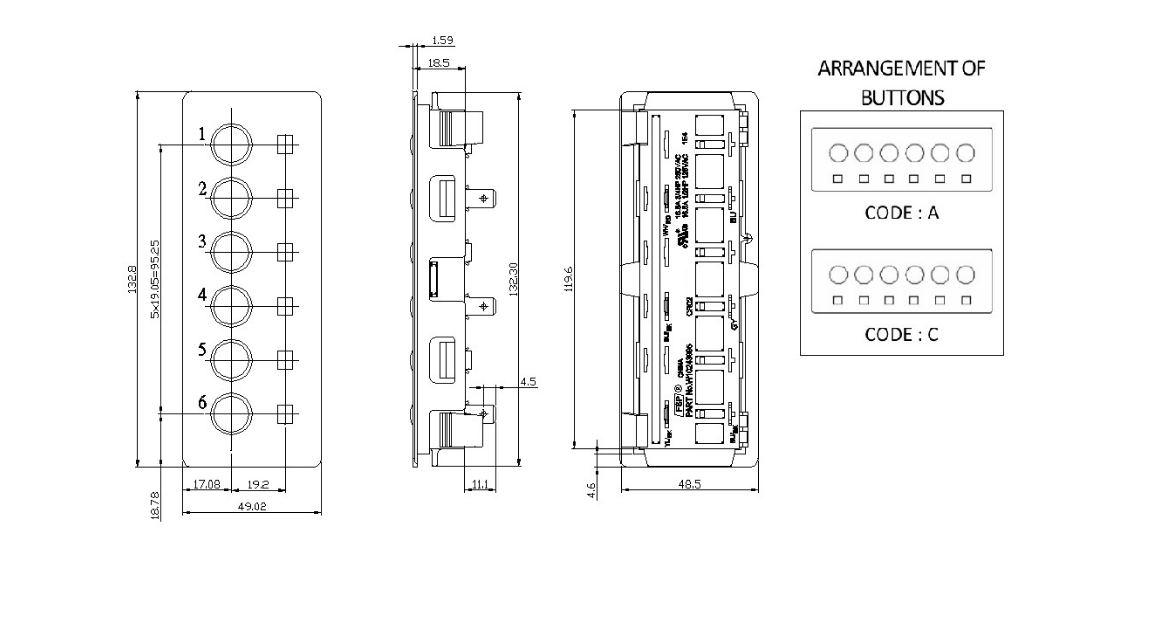

Specifications 1. Rating : 16.5A, 3/4HP, 250VAC. 16.5A, 1/2HP, 125VAC. 2. Electrical Life : over 10,000 cycles. 3. Contact Resistance : 25mQ INITIAL (MAX). 4. Insulation Resistance : 500MQ (MIN) 500VDC. 5. Operation Force : 453~1582 g (1~3.5 lbs). 6. Travel To Activate Switch : 0.4~1.8mm. 7. Dimension marked with are control characteristics, need capability study ( Cpk ) . 8. There are 8 symbols on this print. 9. Applications Product : Fridge
