DAYAO PRODUCT

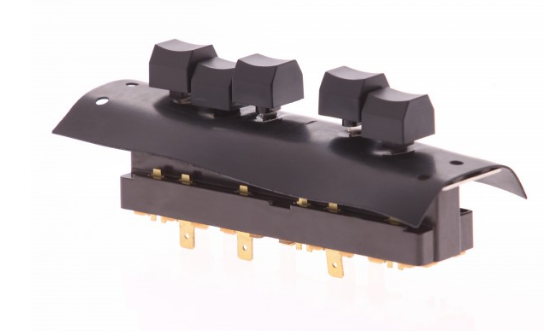

DCR03 SERIES
DCR03系列

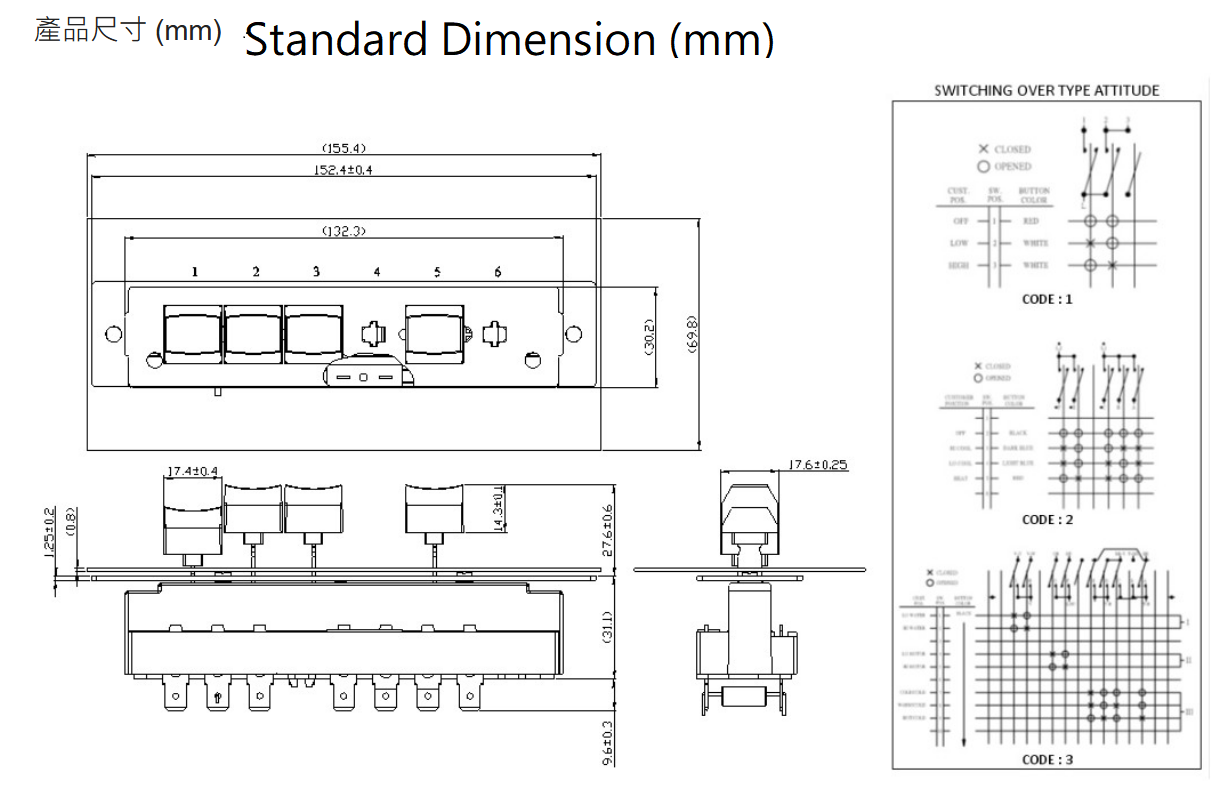

Product specifications
Specifications
1. Rating:8A/240VAC, 10A/120VAC, 1/3HP 240VAC, 1/2HP 120VAC
2. End button gate marks to be oriented toward center of switch.
3. Switch must operate smoothly and require 5 LBS.
MAX. and 1 LB. MIN. for any operation.
4. Minimum force required to remove button 10 LBS.
5. Applications Product : Air Conditioner
