DAYAO PRODUCT

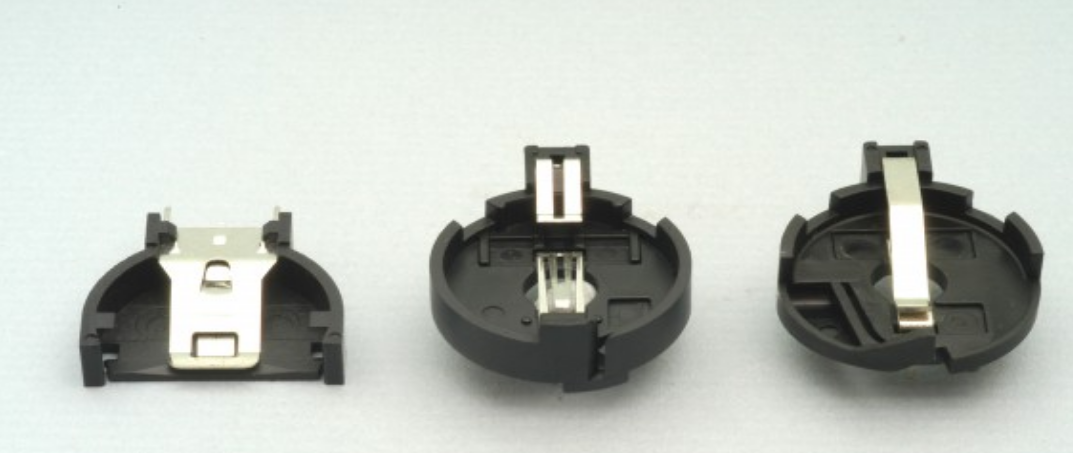

DCR203 SERIES
DCR203系列
Product specifications

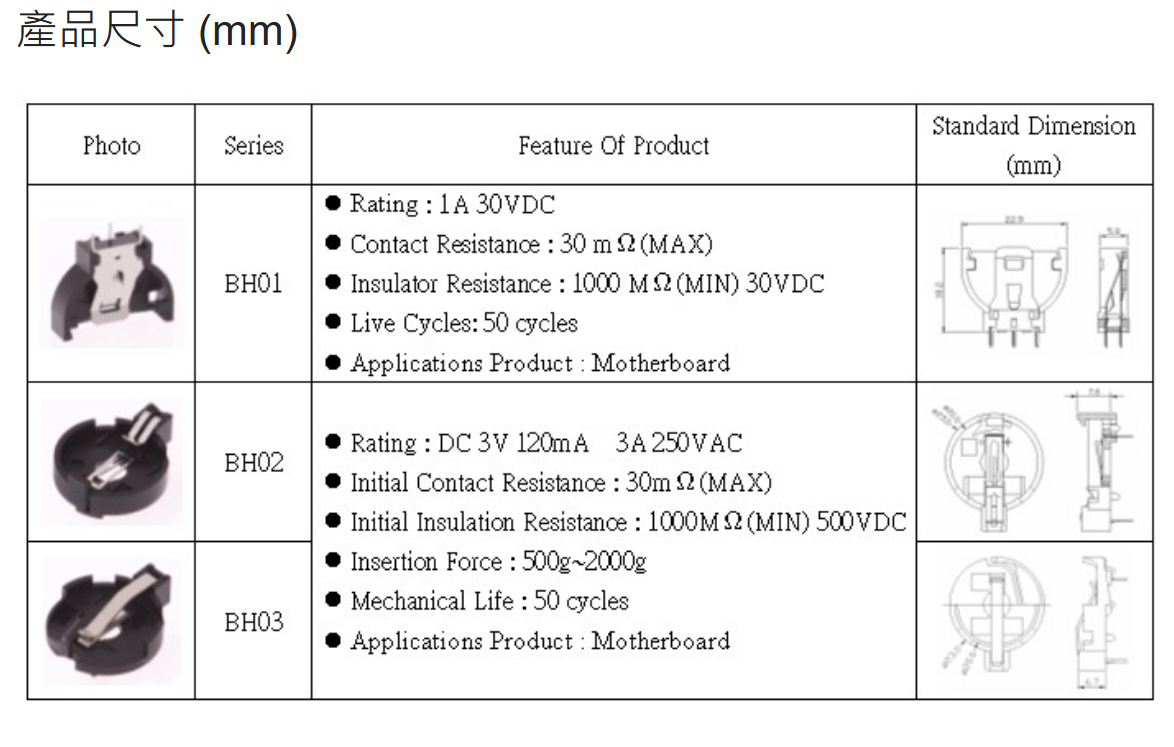

DBH01 · Contact Resistance : 30 m 22 (MAX) · Insulator Resistance : 1000 M 22 (MIN) 30VDC . Live Cycles: 50 cycles . Applications Product : Motherboard Rating : 1A 30VDC DBH02 CBH03 Rating : DC 3V 120mA 3A 250VAC . Initial Contact Resistance : 30m 22 (MAX) Initial Insulation Resistance : 1000M @2 (MIN) 500VDC · Insertion Force : 500g~2000g · Mechanical Life : 50 cycles . Applications Product : Motherboard
