DAYAO PRODUCT

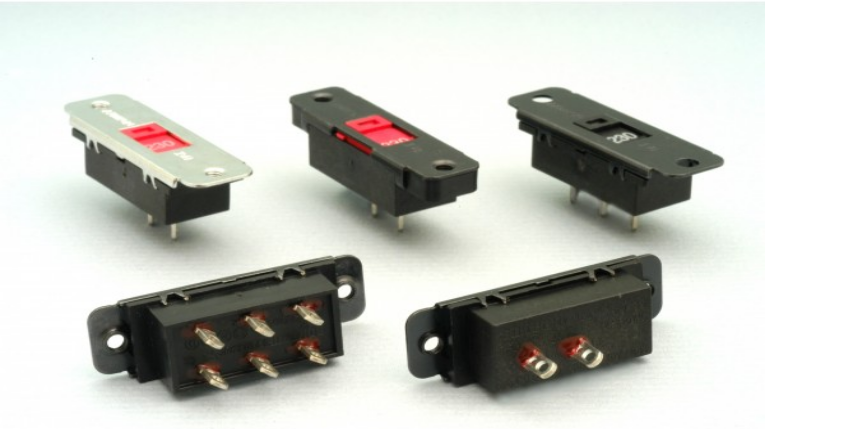

DEV-12 SERIES
DEV-12系列
Product specifications
1. Contact Rating : 12A 125/250VAC T85
10(1)A 250V ~ μ T85
2. Contact Resistance : 20 mQ MAX
3. Insulation Resistance : 500 MQ (MIN) 500V DC
4. Dielectric Strength : 2000V AC-1 minute
5. Electric Life : 300 cycles
6. Operating Force : 500 ± 200gram
7. Applications Product : Desktop PC, Business Machines
