DAYAO PRODUCT

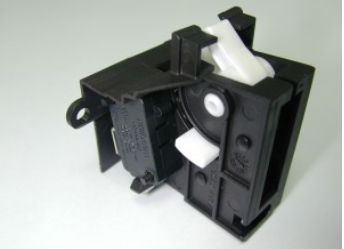

DLH01 SERIES
DLH01系列
Product specifications
Specifications
1. Contact Rating : 16(8)A 250V AC T105
20.5A 125/250V AC 1/2HP 125VAC 1 1/2HP 250V AC
2. Contact Resistance : 50mQ Max
3. Insulation Resistance : 500 MQ (MIN) 500V DC
3. Dielectric Strength : 1500V AC-1minute
4. Electric Life : 50,000 cycles
5. Operating force : ON 24lb(Max) OFF 10.2lb(Min)~19.7lb(Max)
6. Applications Product : Dishwasher
