DAYAO PRODUCT

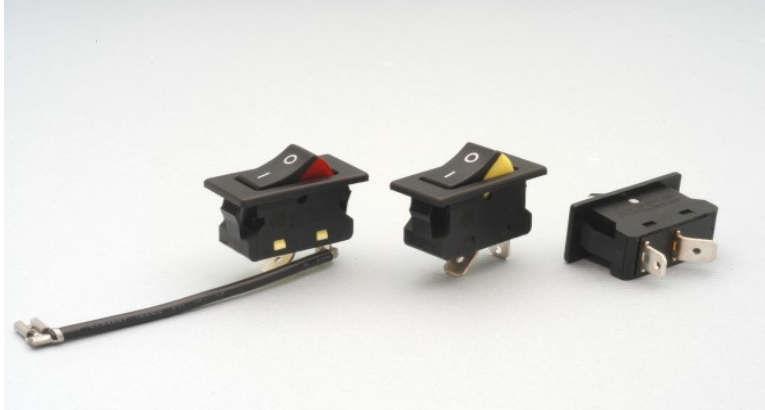

DMR25 SERIES
DMR25系列
Product specifications
1. Contact Rating : 15A 125VAC
7.5A 250VAC
10(4) A 250V~
16(6) A 250V~
2. Initial Contact Resistance : 20mQ (MAX)
3. Insulation Resistance : 100 MQ (MIN) 500V DC
4. Operation Force : 900 ± 200g
5. Life cycles : 50,000 cycles
6. Terminal to Terminal Dielectric Withstand Voltage : 2000V AC-1minute
7. Applications Product : Stove, Dishwasher, Paper Shredder, Grinder
