DAYAO PRODUCT

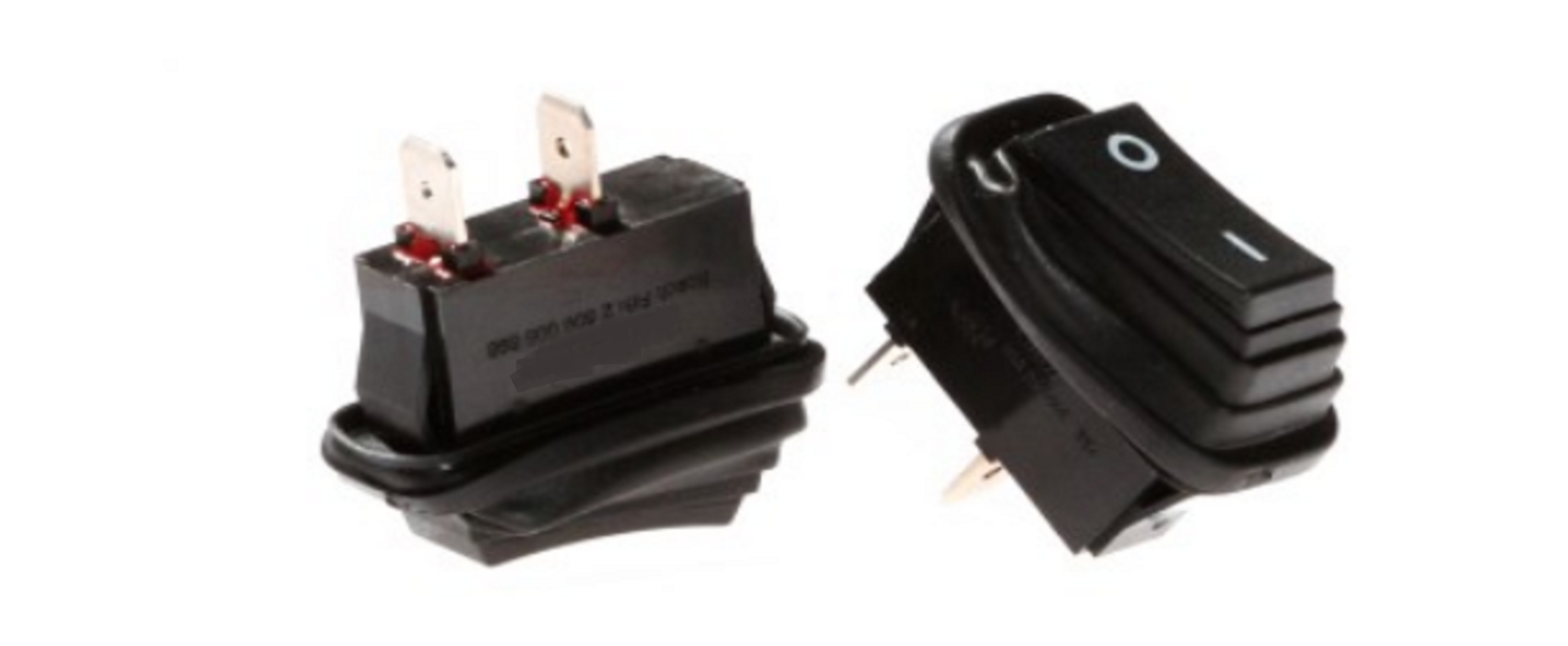

DOR-07 SERIES
DOR-07系列
Product specifications
1. Contact Rating : 10A 250VAC
2. Degree Of Protection : IP55 PER ENEC 61058
3. Initial Contact Resistance : 10mQ2(MAX.)
4. Insulation Resistance : 100MQ(MIN) 500 VDC
5. Dielectric Withstand Voltage :
Between Each Terminal : 2000 VAC-1 minute
6. Life Cycles : 50,000 cycles
7. Applications Product : Paint Spray Gun
Between Terminal And Frame : 3800 VAC-1 minute
