DAYAO PRODUCT

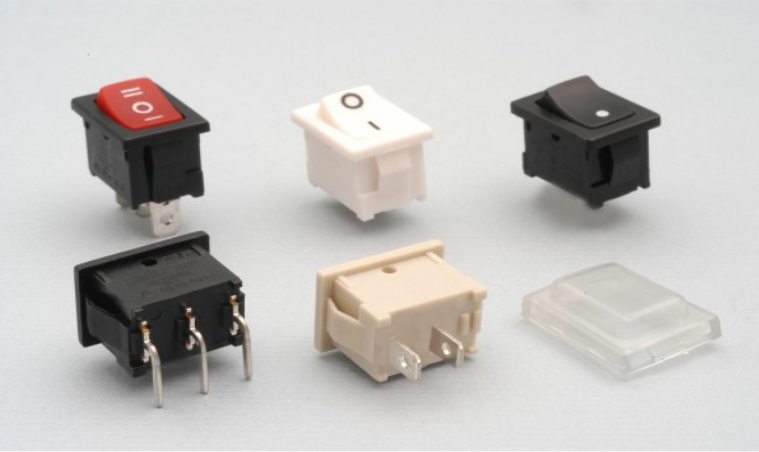

DOR-L
DOR-L系列
Product specifications
1. Contact Rating : 10A 125VAC 6A 250VAC
6A 250V~ T85 / 55 IE4
2. Initial Contact Resistance : 50mQ2(MAX)
3. Insulation Resistance : 500MQ(MIN) 500 VDC
4. Dielectric Strength : 1800V AC-1minute
5. Life Expectancy : 10,000 cycles of operation
6. Electric Life : 10,000 cycles
7. Operating Force : 450 ± 250 gram
8. Applications Product : Desktop PC, Business Machines, Small Appliances
