DAYAO PRODUCT

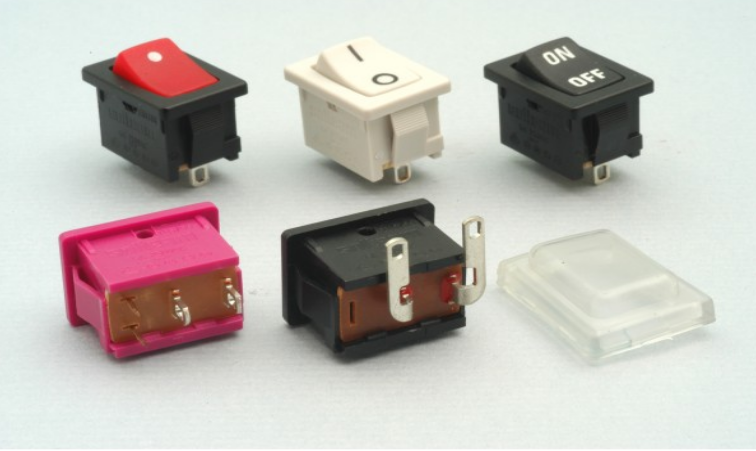

DOR-P SERIES
DOR-P系列
Product specifications
1. Contact Rating : 10A 125VAC 6A 250V AC T65
6A 250V AC T85 / T55
2. Contact Resistance : 50 mQ MAX
3. Insulation Resistance : 500 MQ (MIN) 500V DC
4. Dielectric Strength : 1800V AC-1 minute
5. Electric Life : 10,000 cycles
6. Operating Force : 350 ± 150 gram
7. Applications Product : Desktop PC, Business Machines, Small Appliances
