DAYAO PRODUCT

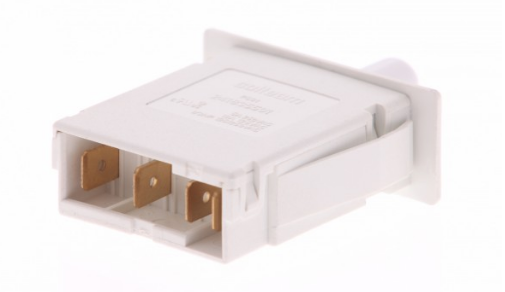

DPS01 SERIES
DPS01 系列
Product specifications
1. Double pole, double throw.
2. Rating : 10A 125V / 5A 250V (UL) 1/3HP 125/250V
5A 250V~5E4 (ENEC)
3. Life Cycles : 100,000 cycles
4. Push Force : 850±250g
5. Pretravel : 3.0mm MAX
6. Overtravel Position : 5.7mm
7. Operating Position : 19±1mm
8. Applications Product : Fridge
