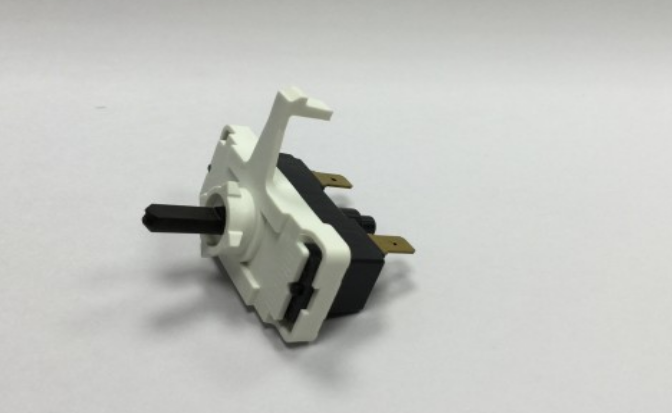

DAYAO PRODUCT
DPS14 SERIES
DPS14系列
Product specifications
1. Rating : 15A 125V
15A 250V
1/2HP 125V
1/2HP 250V
2. Initial Contact Resistance : 30mQ2(MAX)
3. Insulation Resistance : 500MQ(MIN) 500 VDC
4. Dielectric Strength : 1500V AC-1 minute.
5. Life Cycles : 10,000 cycles
6. Operating Force : 530 ± 180g
7. Applications Product : Dryer
