DAYAO PRODUCT

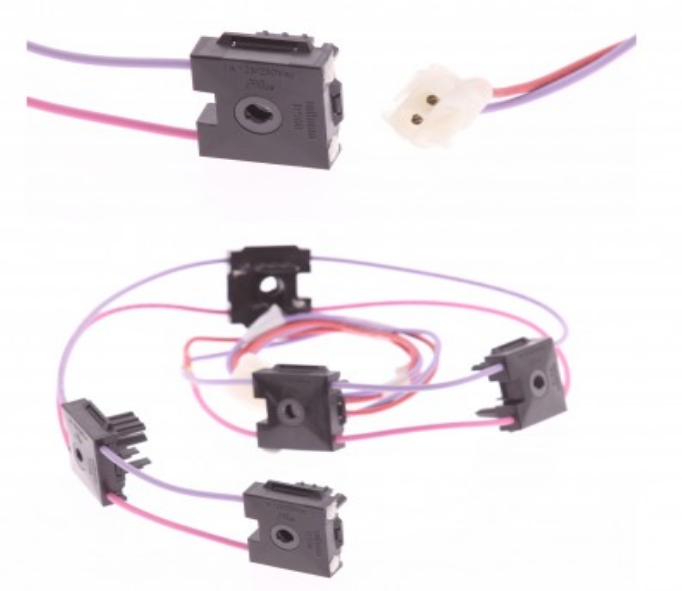

DR08 SERIES
DR08系列
Product specifications
1. Switch Rating : 1.0A 125VAC.
2. Leakage :
500 megaohms minimum per switch per switch between contacts and contacts.
Dielectric withstanding voltage (to ground) 1250V, 1 minute or 1500V 1 second.
3. Operating Temperature : 150C
4. Max, rotating torque 0.5 LB-IN to complete A 360° rotation.
5. 100% Electrical Test Required : continuity test.
6. Material used must be comply with BQI-0555.
7. Applications Product : Stove
