DAYAO PRODUCT

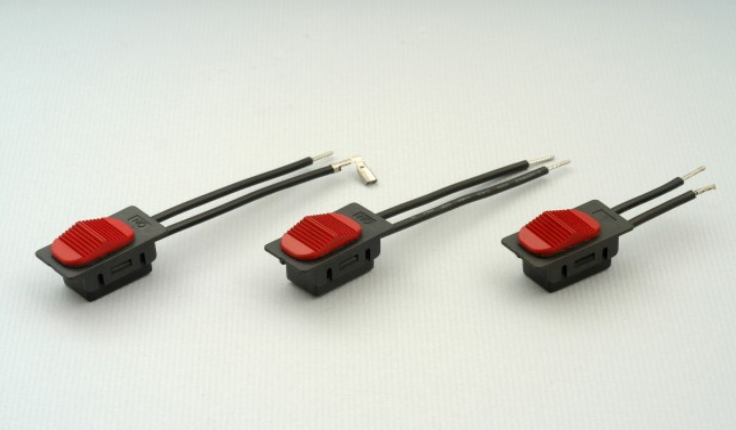

DSL25 SERIES
DSL25系列
Product specifications
1. Contact Rating : 6A 125VAC
3A 250VAC
2. Initial Contact Resistance : 100mQ (MAX)
3. Insulation Resistance : 500 MQ (MIN) 500V DC
4. Operation Force : 600 ± 200g
5. Life cycles : 50,000 cycles
6. Terminal to Terminal Dielectric Withstand Voltage : 2000V AC-1minute
7. Applications Product : Grinder
