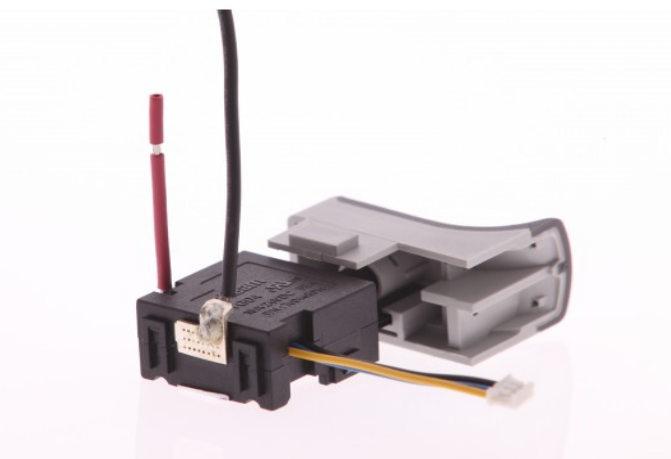

DAYAO PRODUCT
DTG04 SERIES
DTG04系列
Product specifications
1. Contact Rating : 15A, 24 VDC (UL&C-C-UL)
2. Initial Contact Resistance : 10 mQ (MAX)
3. Insulation Resistance : 100MQ (MIN), 500VDC
5. Life cycles : 100,000 cycles
6. Applications Product : Drill, Chain Saw, Hammer Drill
4. Operation Force : "ON" Position: 12.5 ± 3N
End of Travel: 22 ± 3N
