DAYAO PRODUCT

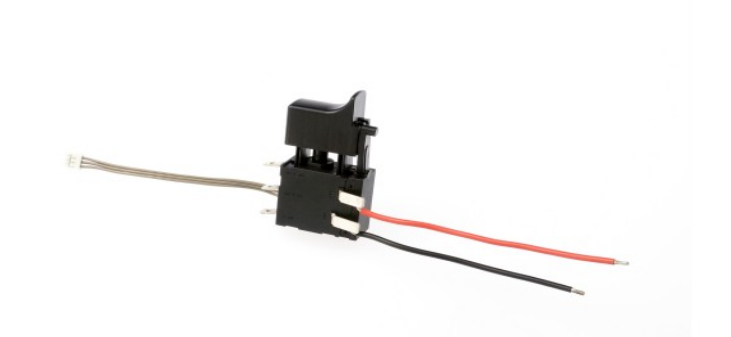

DTG09 SERIES
DTG09系列
Product specifications
1. Contact Rating : 25.5A, 24VDC
2. Initial Contact Resistance : 5mQ
3. Insulation Resistance : 500MQ
4. Life cycles : 50,000 cycles
5. Terminal to Terminal Dielectric Withstand Voltage : 1500 VAC-1 minute
6. Terminal to Enclosure Dielectric Withstand Voltage : 3800 VAC-1 minute
7. Applications Product : Drill, Chain Saw, Hammer Drill
