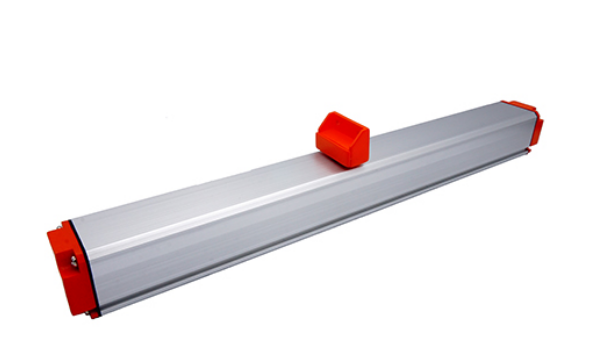

DYLTF magnetostrictive Linear position sensor

Key Features Excellent linearity Temperature coefficient < 15 ppm/K Resolution better than 0.01 mm High operating speed DIN 43650 standard plug and socket Protection class IP67 Main Features The LTF magnetostrictive scale (magnetostrictive displacement sensor / non-contact displacement sensor) operates based on the magnetostrictive measurement principle. Resistant to magnetic field interference No mechanical wear, ensuring unlimited mechanical service life Linear measurement with absolute value output Allows slider misalignment of ±1 mm from the motion center Unaffected by external media; suitable for harsh environments with high contamination and heavy dust
