DYMPS-L

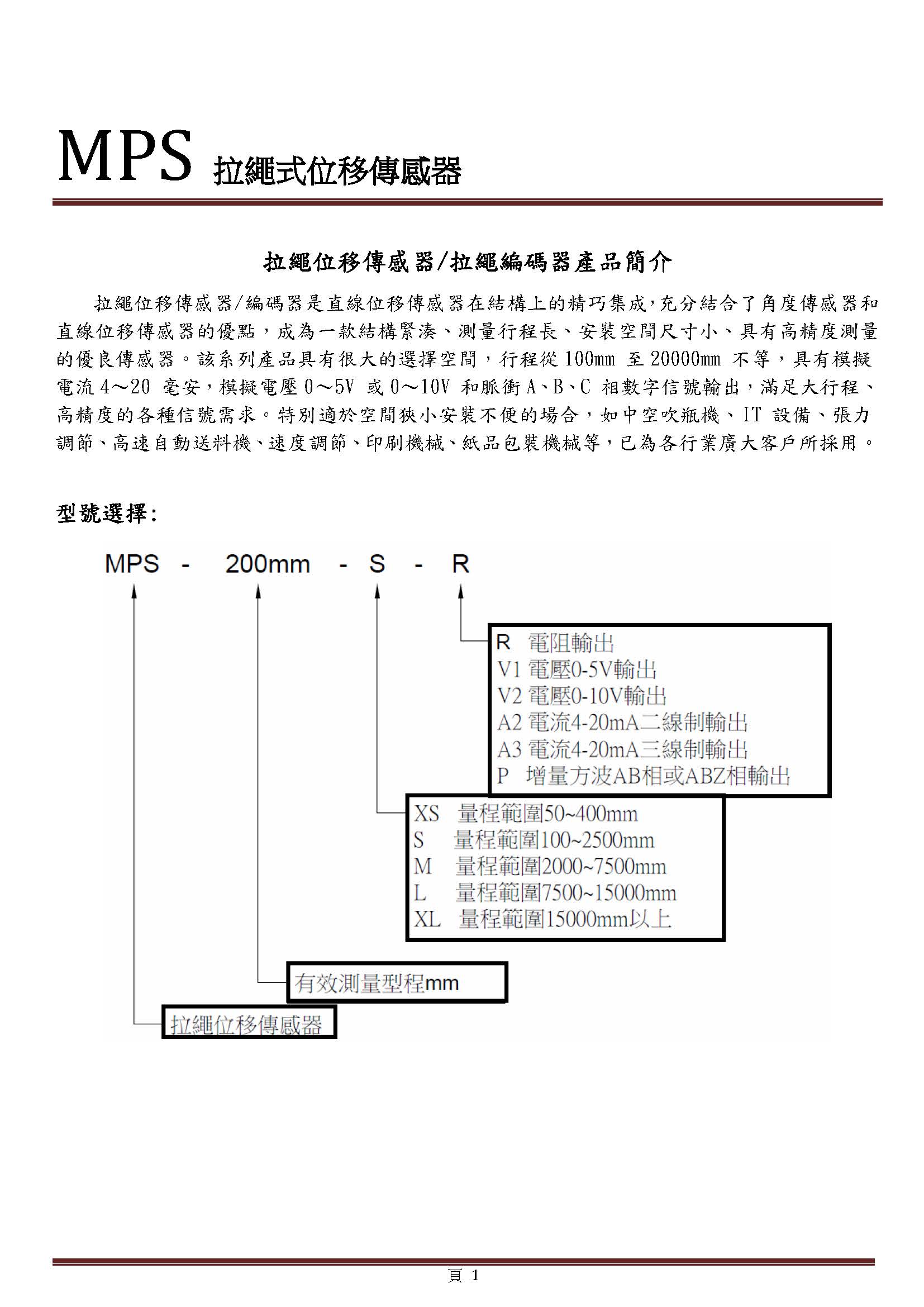

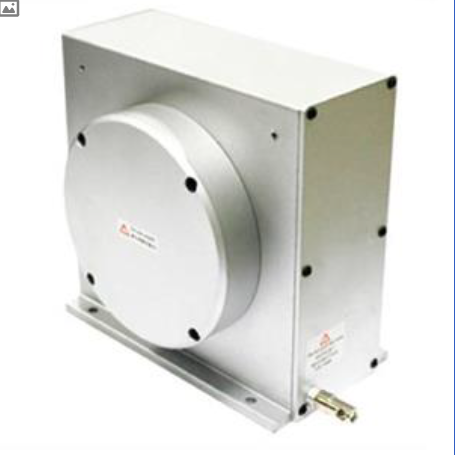

Service life up to 5 million cycles Linearity accuracy: ±0.15% Repeatability: ±0.02% Multiple output options available Product Description The draw wire displacement sensor / encoder is a compact and ingeniously integrated linear displacement sensor that combines the advantages of both angular sensors and linear displacement sensors. It features a compact structure, long measurement stroke, small installation space requirement, and high-precision measurement performance. This product series offers a wide range of options, with measurement strokes ranging from 100 mm to 20,000 mm. Available output signals include analog current (4–20 mA), analog voltage (0–5 V or 0–10 V), as well as digital pulse outputs (A, B, C phase), meeting various application requirements for long stroke and high-precision measurement. It is particularly suitable for applications where installation space is limited or mounting is difficult, such as hollow blow molding machines, IT equipment, tension control systems, high-speed automatic feeding machines, speed control systems, printing machinery, and paper packaging machinery. This series has been widely adopted by customers across various industries.
