DAYAO PRODUCT

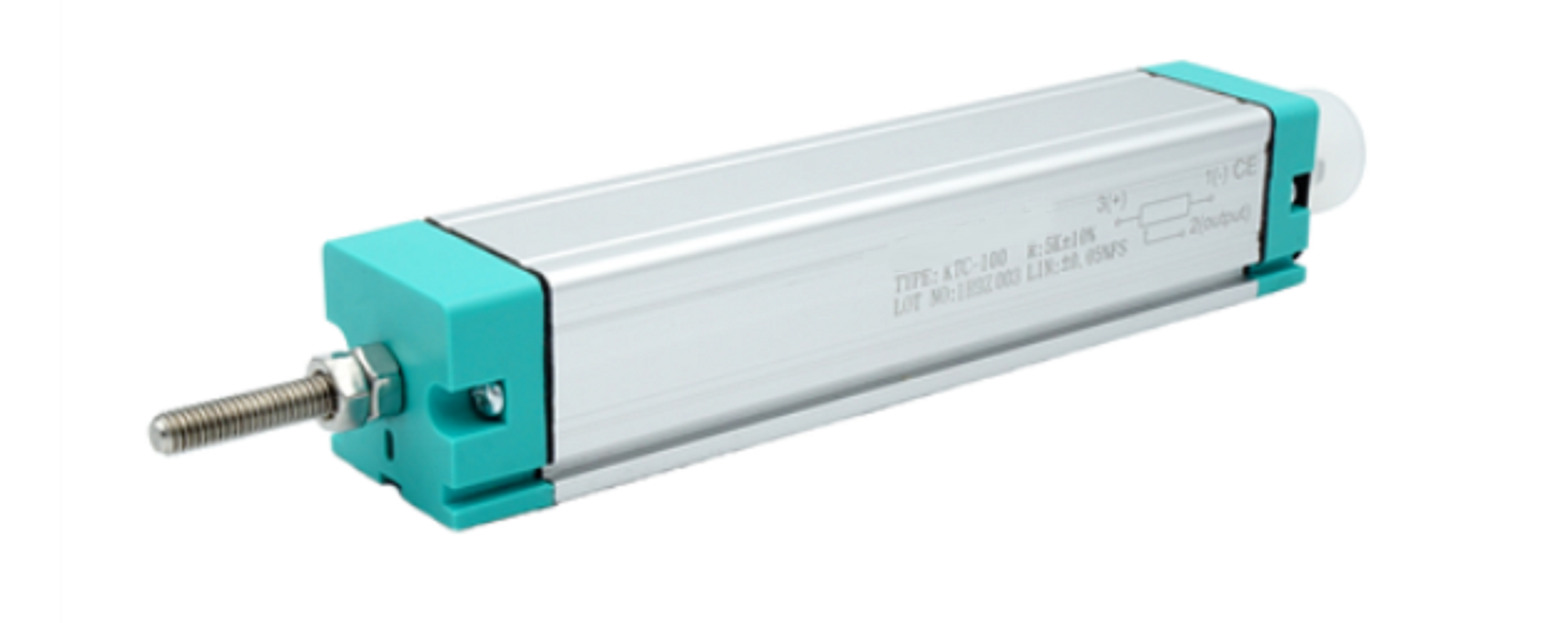

KTC Potentionmeter conductive plastic linear
KTC線性位移傳感器
Product specifications
Long service life, up to 50X 106 times. 。
Excellent linearity。
Higher resolution 0.01mm。
High running speed。
DIN43650 Standard plug and socket。
Protection level IP65。
Characteristic
Improved design to meet the measurement needs of various conditions。
The sensor is rugged and shock-resistant。
No electrical signal output changes after theoretical electrical travel, making installation easier。
The new slot design is an ideal alternative to traditional bracket-mounted systems。
Widely used in plastic molding machines,
