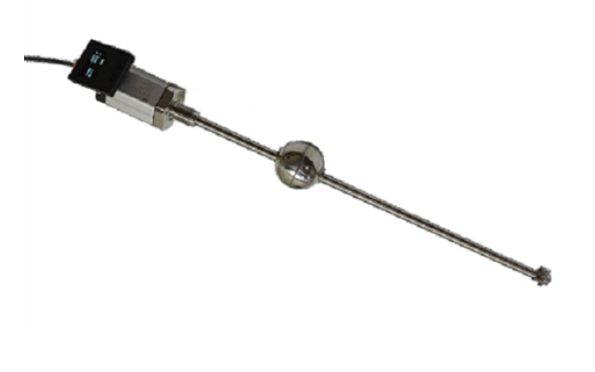

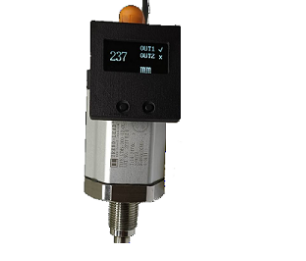

DYLTMS magnetostrictive Linear position sensor

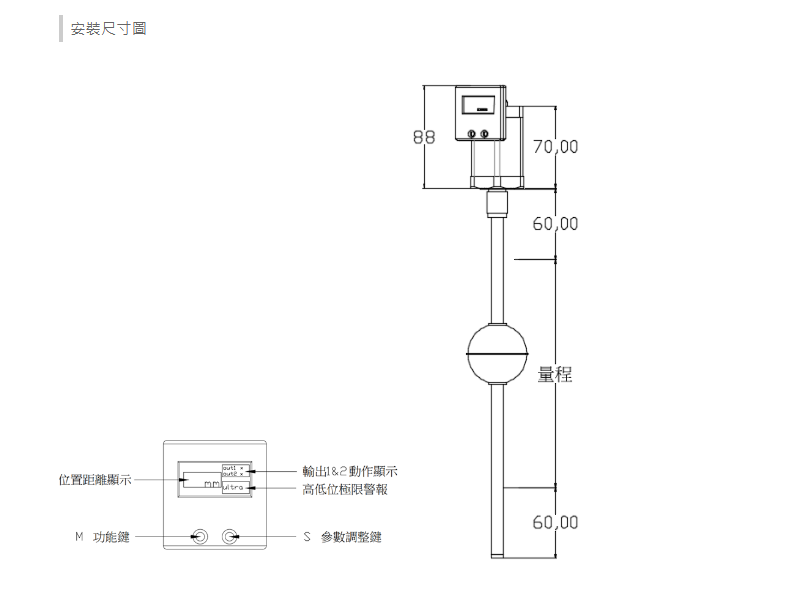

Key Advantages No homing or zero reset required after power restoration High stability and reliability Easy installation with no need for periodic calibration No mechanical wear; theoretically unlimited mechanical service life Equipped with a display for fast and convenient operation Main Features The LTM magnetostrictive scale (magnetostrictive displacement sensor / non-contact displacement sensor) utilizes the magnetostrictive measurement principle. Resistant to magnetic field interference No mechanical wear, ensuring unlimited mechanical service life Linear measurement with absolute value output Description Housing: Anodized aluminum / 304 stainless steel Mounting: M18 thread / flange mounting Sensing Element: 304 stainless steel cylindrical / spherical float Electrical Connection: M12 4-pin connector
